Fire water truck is mainly used to fight fire , transport firefighters to the disaster site and provide them with multiple tools for disaster relief tasks. 6 cbm fire water truck is composed of 6 cbm water tank or foam tank, ladder, water monitor, portable fire extinguishers, demolition tools, first aid kits , fire pumps, etc.
Dongfeng fire water truck is used very widely in China or other countries, because dongfeng fire water truck have the advantage of low price, good warranty.

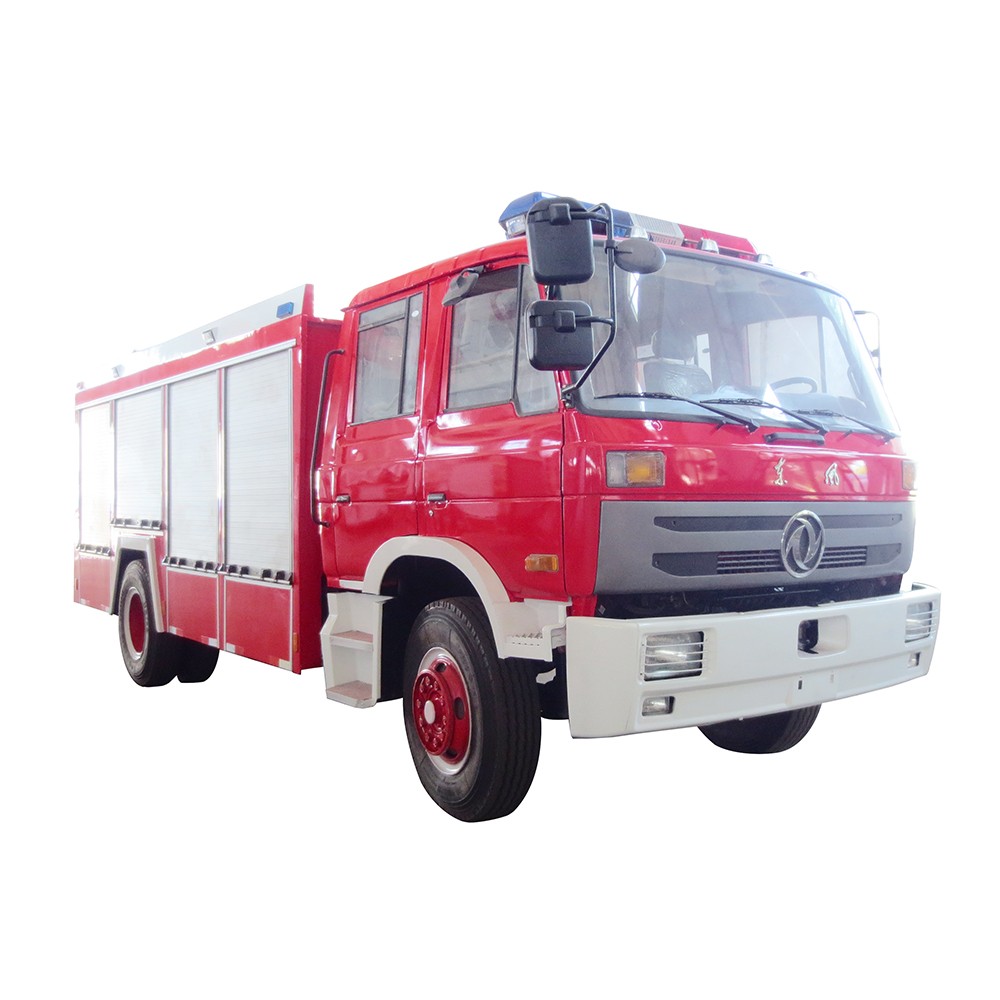

Dongfeng 6 Cbm Fire Water Truck
Fire water truck is called fire engine, fire fighting water truck, fire water truck is mainly used to fight fire and transport water in urgent condition.
Product Feature
Dongfeng most cost-effective chassis
Adopt China famous fire pump, fire monitor, etc,
6 cbm water tank with China or England or American standard accessory
Factory direct sale, high quality low price
Main parameter
Product Name | Dongfeng 6 Cbm Fire Water Truck |
Driving Type | 4×2 |
Weight /Volume |
Tank Volume(cbm) | 6 |
Rated payload weight(kg) | 6000 |
Dimensions |
Wheelbase(mm) | 4500 |
Overall Dimension(mm) | 8295×2370×3290 |
Engine |
Engine brand & model | DONGFENG Cummins & B190 33 |
Engine type | 4 stroke, water-cooled, straight line 6 cylinders, diesel |
Displacement(L)/Power(kw) | 5.9/140 |
Chassis |
Axle Quantity | 2 |
Transmission Type | Dongfeng 6 or Fast 8 forwards,1 reverse gear, manual |
Steering Type | LHD or RHD with power steering |
Brake system | Air brake |
Tire Spec. & size | 10.00R20 , 6 with a spare |
Cab |
Standard configuration | Flat proof, double row, radio, A/C |
Performance parameter of DONGFENG 6 cbm fire water truck |
Extinguishing Media | water |
Tank material | Carbon steel or stainless steel |
Compartment structure | Steel tank, steel pump room ,steel equipments box , with 5-7 aluminum curtain doors |
Configuration and performance | 1. Fire pump: CB10/60 fire pump(rear-mounted) |
2. Fire monitor :PS50 fire monitor (pressure:1.0MPa,flow:20L/s), water range:≥60m |
3. 1200mm long LED warning lamp one the top of cab, rear searchlight, ladder |
4. Special accessory: water pipe and kinds demolition and rescue tools |
