Cesspool truck is used to pump and discharge the sewage water in the sewer , ditch, cesspool, etc. Cesspool truck is composed of sewage suction tank, high quality vacuum pump, pipeline, and related valve accessory.
Beiben(North Benz) cesspool truck combine the beiben high quality cargo chassis and CLW high quality sewage suction tank. Beiben 10 cbm cesspool truck is best option.

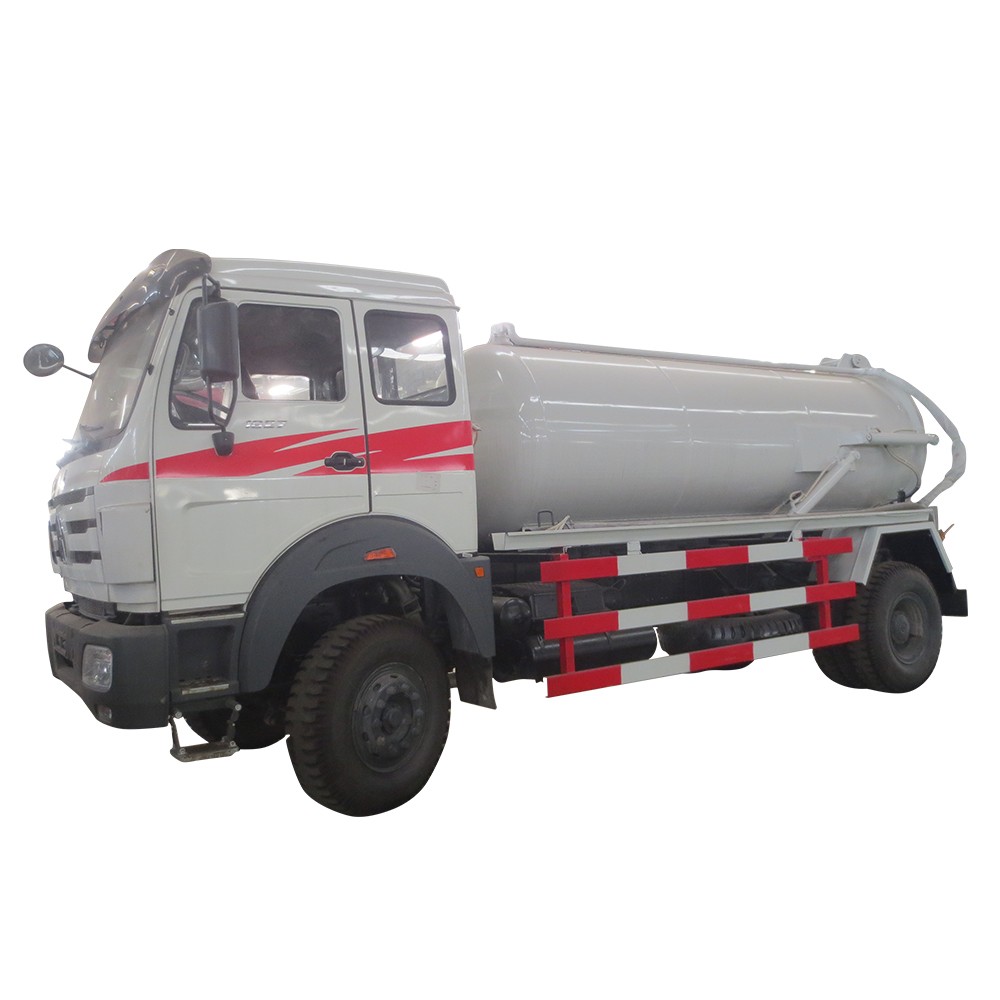

10 M3 Cesspool Truck
Ａpplication and Introduction
Cesspool truck is also called cesspool sewage suction truck, vacuum suction truck, is mainly used to transfer the sewage water or sludge.
Product Features
Self-priming, self-discharging, rear door hydraulic open and close
Mounted with Italy brand vacuum pump with large suction power and long suction distance
Beiben(North Benz) cargo chassis with famous Weichai engine
Main parameter
Product Name | 10 m3 cesspool truck |
Driving Type | 4×2 |
Weight /Volume |
Tank Volume(cbm) | 10 |
Rated payload weight(kg) | 10000 |
Dimensions |
Wheelbase(mm) | 4600 |
Overall Dimension(mm) | 8995×2370×3400 |
Engine |
Engine brand | Weichai Power |
Engine type | 4 stroke, water-cooled, straight line 6 cylinders, diesel |
Chassis |
Axle Quantity | 2 |
Transmission Type | FAST 8 forwards,1 reverse gear, manual |
Steering Type | LHD or RHD with power steering |
Brake system | Air brake |
Tire Spec. & size | 10.00R20, 6 with a spare |
Cab |
Standard configuration | Flat proof, single sleeper, electric window, central lock, radio, A/C |
Performance parameter of 10m3 cesspool truck |
Tanker shape | Cylinder body |
Tanker material | 5mm carbon steel( option: stainless steel) |
Standard configuration | 1.with one high quality special vacuum pumps, vertical suction lift is about 7-10m. |
2.Accessory: inspect sewage window, one gravity mouth, rear door controlled by hydraulic, cleaning apparatus, 5 meter long suction pipe, oil-water separators, overflow valve, etc, |
